تفاصيل المنتج:
|
اسم: | آلة بثق بوتيل عالية السرعة لمعدات معالجة الزجاج العازل | مسرعة العمل: | 5-47 م |
---|---|---|---|
عرض سباير الألومنيوم: | 5-47 م / دقيقة | ||
تسليط الضوء: | إنتاج الزجاج المزدوج,خط الزجاج العازل |
LIJIANG GLASS-FOR WORLD PROCESSING GLASS MANUFACTURE Service

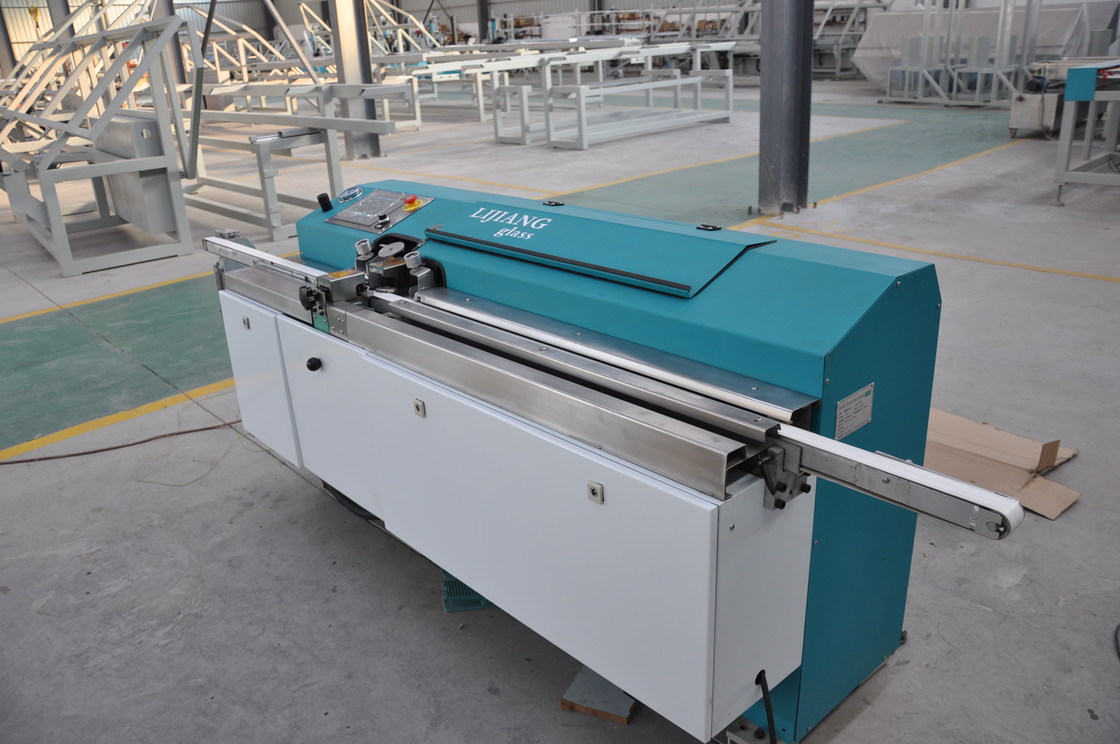

بوتيل هـXtruder مأخين LJTB 01
بوتيل إيXtruder آلة LJTB 01
² تطبيق
The type of LJTB01 butyl extruder machine is used for spreading aluminum spacer frames evenly with hot melt butyl. يتم استخدام نوع آلة بثق البوتيل LJTB01 لنشر إطارات فاصل الألومنيوم بالتساوي مع بوتيل الصهر الساخن. This equipment use large electrical control panel which makes the operation more easier. يستخدم هذا الجهاز لوحة تحكم كهربائية كبيرة مما يجعل العملية أسهل. The conveyor of aluminum is controlled by frequency converter, and the speed can be adjusted from 0m/min to 47m/min, which has the fastest speed in China. يتم التحكم في ناقل الألمنيوم عن طريق محول التردد ، ويمكن تعديل السرعة من 0m / min إلى 47m / min ، والتي لديها أسرع سرعة في الصين. It is very popular with energy-saving. أنها تحظى بشعبية كبيرة مع توفير الطاقة. Its squeezing system adopts pneumatic and hydraulic supercharging system, which makes the squeezing pressure more stable. يعتمد نظام الضغط الخاص به نظام الشحن الهوائي والهيدروليكي ، مما يجعل ضغط الضغط أكثر استقرارًا. The dispensing cylinder uses vertical rotary support system and it makes the refill of butyl easier. تستخدم أسطوانة التوزيع نظام دعم دوار رأسي وتجعل إعادة تعبئة البوتيل أسهل. It can prolong the life of squeezing system and set the heating time in 24 hours with electricity and air pressure. يمكن أن يطيل عمر نظام الضغط ويضبط وقت التسخين في 24 ساعة بالكهرباء وضغط الهواء. The distance of squeezing head can be adjusted automatically according to different aluminum spacer. يمكن تعديل مسافة ضغط الرأس تلقائيًا وفقًا لمباعدة ألومنيوم مختلفة. The machine has reached the worldwide technology with the characteristic of complete function and stable working mode. وصلت الآلة إلى التكنولوجيا العالمية بخصائص الوظيفة الكاملة ووضع العمل المستقر.
² معلومات تقنية
ضغط الضغط | 10-18MPa |
درجة الحرارة | 110 ~ 140 ℃ |
عرض فاصل الألومنيوم | 4-30 ملم |
سرعة | 0-47 م / دقيقة |
قطر اسطوانة البوتيل | 200 ملم |
مزود الهواء | 0.4 م 3 / دقيقة |
ضغط جوي | ≥0.6MPa |
إجمالي الطاقة | 380 فولت ، 5 كيلو واط ، 50 هرتز |
البعد | 2600 × 680 × 1100 مم (الطول × العرض × الارتفاع) |
وزن | 650 كجم |
² التكنولوجيا الرائدة:
►يمكن ضبط crossgirder العامل بسهولة
► تلقائي للتحقق من عرض فاصل الألمنيوم
Jinan Lijiang Automation Equipment Co., Ltd. is located in the beautiful spring city------Jinan. يقع Jinan Lijiang Automation Equipment Co.، Ltd. في مدينة الربيع الجميلة ------ Jinan. It is an enterprise which integrated glass processing equipment research and development, sales and service into a whole world . وهي مؤسسة دمجت بحث وتطوير معدات معالجة الزجاج والمبيعات والخدمات في عالم كامل. As it is close to Beijing-Shanghai high-speed rail, the transportation is very convenient. ولأنها قريبة من السكك الحديدية عالية السرعة بين بكين وشنغهاي ، فإن وسائل النقل مريحة للغاية.
The company is committed to building high-end insulating glass machinery and equipment by learning from famous experts, establishing the research and development centers, cooperating with domestic and foreign well-known enterprises, importing advanced technology and so on. تلتزم الشركة ببناء آلات ومعدات الزجاج العازل المتطورة من خلال التعلم من خبراء مشهورين ، وإنشاء مراكز البحث والتطوير ، والتعاون مع الشركات المحلية والأجنبية المعروفة ، واستيراد التكنولوجيا المتقدمة وما إلى ذلك. Now, our friendly partners include North Glass, Xin Fuxing, Yaohua, Dalian Huaying, Beijing Guanhua, Shanghai Hao Jing, Sichuan Li Hehua and other well-known enterprises. الآن ، يشمل شركاؤنا الودودون North Glass و Xin Fuxing و Yaohua و Dalian Huaying و Beijing Guanhua و Shanghai Hao Jing و Sichuan Li Hehua ومؤسسات أخرى معروفة. Since the establishment of the company, our products have been exported to Europe, America, South America, the Middle East, Southeast Asia, India, nearly 30 countries and regions. منذ تأسيس الشركة ، تم تصدير منتجاتنا إلى أوروبا وأمريكا وأمريكا الجنوبية والشرق الأوسط وجنوب شرق آسيا والهند وما يقرب من 30 دولة ومنطقة. At the same time, our company worked with the well-known domestic research institutes, such as the North China Industrial Group, Shandong University and others, to constantly improve the level of technical research. في الوقت نفسه ، عملت شركتنا مع معاهد البحوث المحلية المعروفة ، مثل مجموعة شمال الصين الصناعية ، وجامعة شاندونغ وغيرها ، لتحسين مستوى البحث التقني باستمرار. So far, we have independently produced the vertical automatic IG production line with filling gas on line, the vertical IG sealing robot, the automatic spacer bending machine, the automatic desiccant filling machine and the new fully automatic butyl extruder machine, its technology and quality have reached the highest leading level in China. حتى الآن ، أنتجنا بشكل مستقل خط إنتاج IG الأوتوماتيكي الرأسي مع تعبئة الغاز على الخط ، روبوت الختم IG الرأسي ، آلة ثني الفاصل الأوتوماتيكية ، آلة تعبئة المجففات الأوتوماتيكية وآلة بثق البوتيل الأوتوماتيكية الجديدة بالكامل ، التكنولوجيا والجودة لديها وصلت إلى أعلى مستوى قيادي في الصين.
مع التطور السريع لصناعة الزجاج العازل ، تتطلع LIJIANG للعمل معك من أجل وضع مربح للجانبين وخلق عالم جديد بشكل مشترك.
