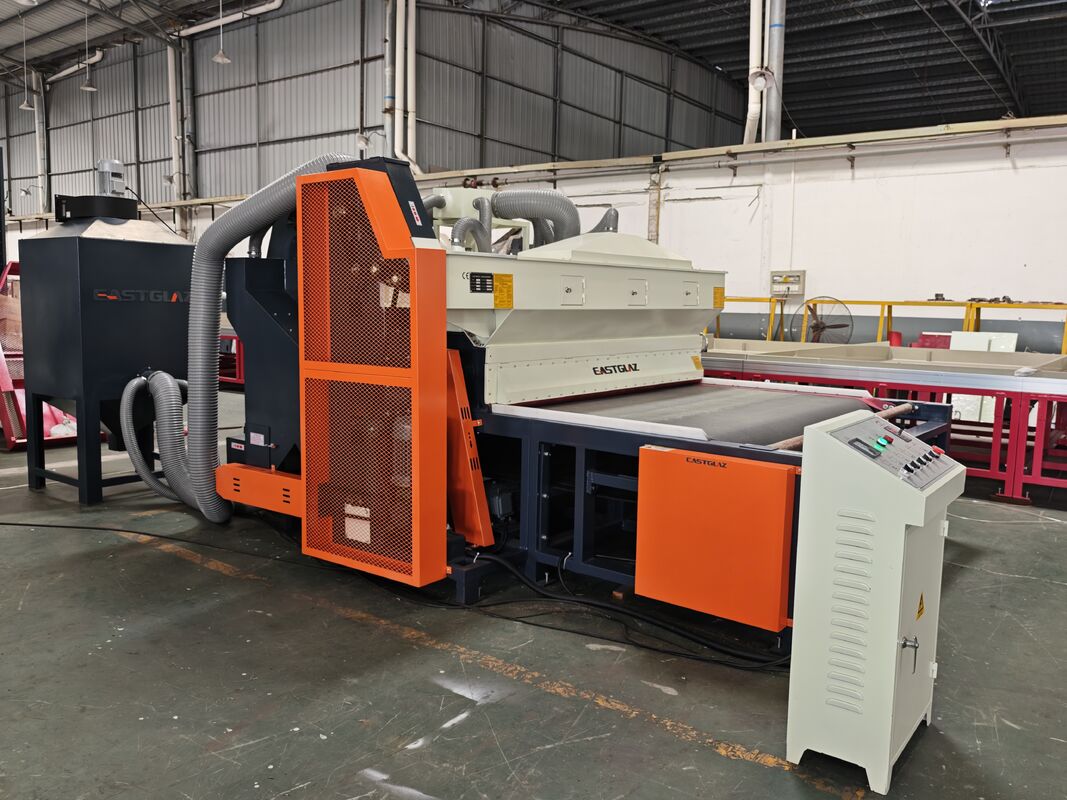

Horizontal Automatic Glass Sandblasting Machine – Stainless Steel, 1500mm, Glass Surface Finishing

Horizontal SandBlasting Machine

Description:

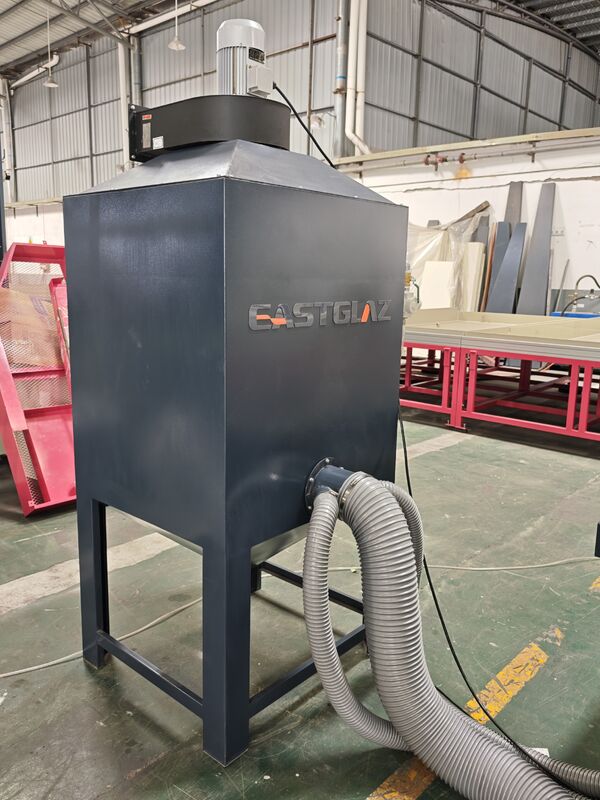

Full-automatic glass sandblasting machine contains of dust collecting--sand sweeping--transportation--grit feeding--sandblasting--sound attenuation--grit filtration--grit equalization--grit storage--shakeout. Each production process section is completed automatically. Improved working environment and reduced labor intensity. Due to greatly reducing production cost, the machine has been accepted and selected by the majority of customers. This machine is suitable for sanding the surface of glass, acrylic, stone, ceramic, metal and other materials.

There are five power motors and control circuits installed to control the entire glass sandblasting machine. The fastest processing speed in China, 0.7m/min or more and low noise. The longest working face in the industry, 3 station loading glass structure, and easy to operate. The frame structure design is reasonable, and the overall rigidity is excellent. The only sandblasting machine with separable structure, convenient disassembly and assembly, and convenient transportation. The sand is circulated in the machine and filtered three times to ensure that the ash content of the sand meets the quality requirements.

Sand loading and requirement:

When adding sand particles, it is necessary to slowly and evenly pour them onto the conveyor belt at the back, so that the sand particles evenly fall into the sand collection box of the sand circulation system. Generally, 25kg of sand particles should be evenly added within 2-3 minutes to avoid local accumulation of sand particles and avoid overloading and shutdown. Required 36-60 mesh of aluminium oxide sand.

Main configuration :

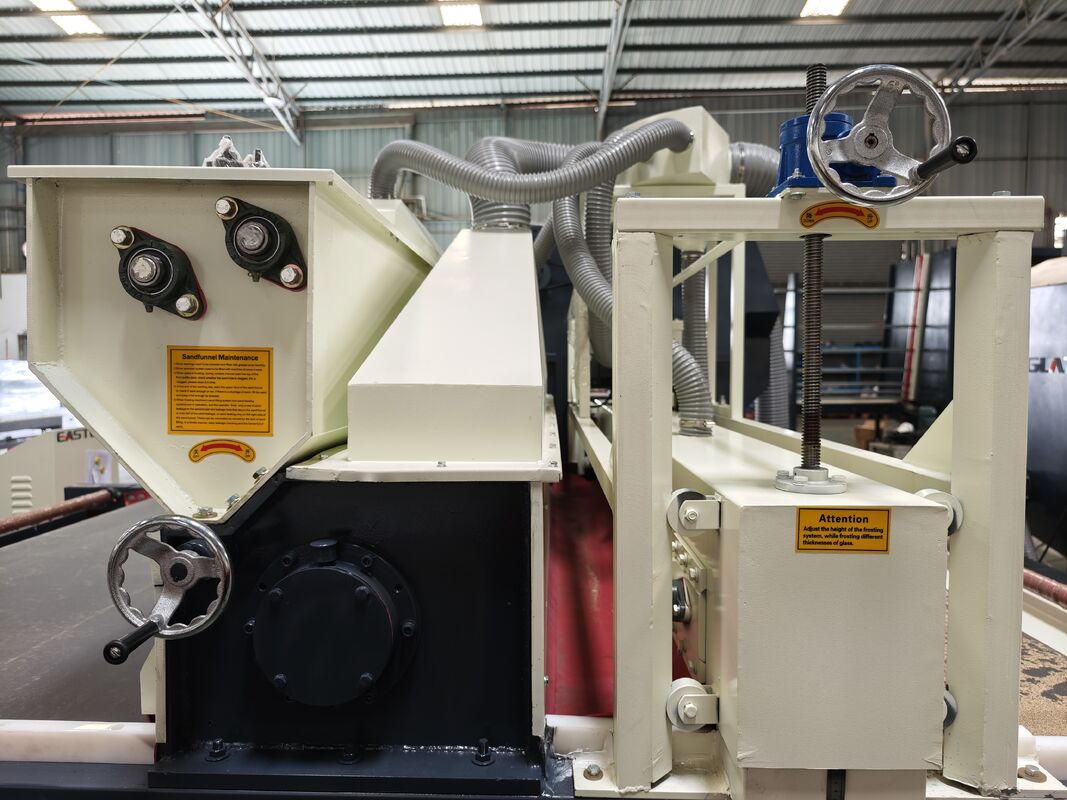

Sanding system:

1. All high-quality cast iron bearing seats, top brand bearings such as TWB. Stable quality and high accuracy
2. 40Cr material spindle full grinding machine processing, stable and high-precision.

3,8+5mm ultra thick large circular arc plate, with stronger rigidity. 8+5mm

Sand Sweeping system:

1. Full 2MM steel plate body.
2. Fully casted pulley
3. Specially made belt and brush, durable and durable.
4. Automatic sand cleaning, higher production efficiency.
5. Sand cleaning device can be lifting as per production need.

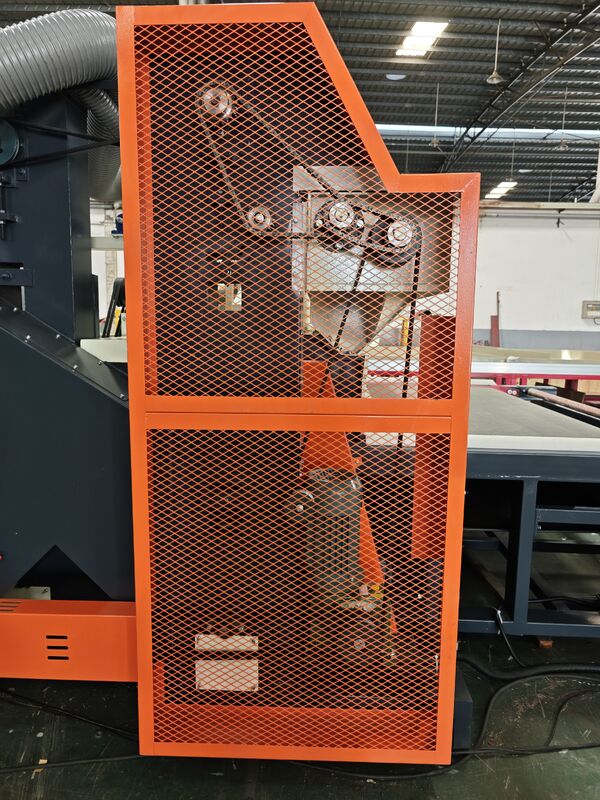

Sand lifting up system:

1,Double sand lifting tower with filtering and anti blocking sand.

2,There are sand separators at both ends of the sand leakage box, dust covers on both sides of the bearings, dust rubber pads on the bearing seats, and three layers of protection to prevent bearing burnout.

3,2MM fully welded sand lifting bucket, more durable

Sand leaking system :

1,sand shaft for miners, almost without wear.

2,3-layer dustproof structure, low failure rate.

Electrical control system :

1,Frequency converter speed regulation, convenient split operation control cabinet. Easily adjust the conveying speed, and adjust the sanding speed as needed.

2,All Delixi Electric, stable and durable. The low-voltage control circuit is safe and reliable, meeting relevant safety requirements.

Blower :YuTong Guangdong

Main motor : Siemens
