تفاصيل المنتج:
|

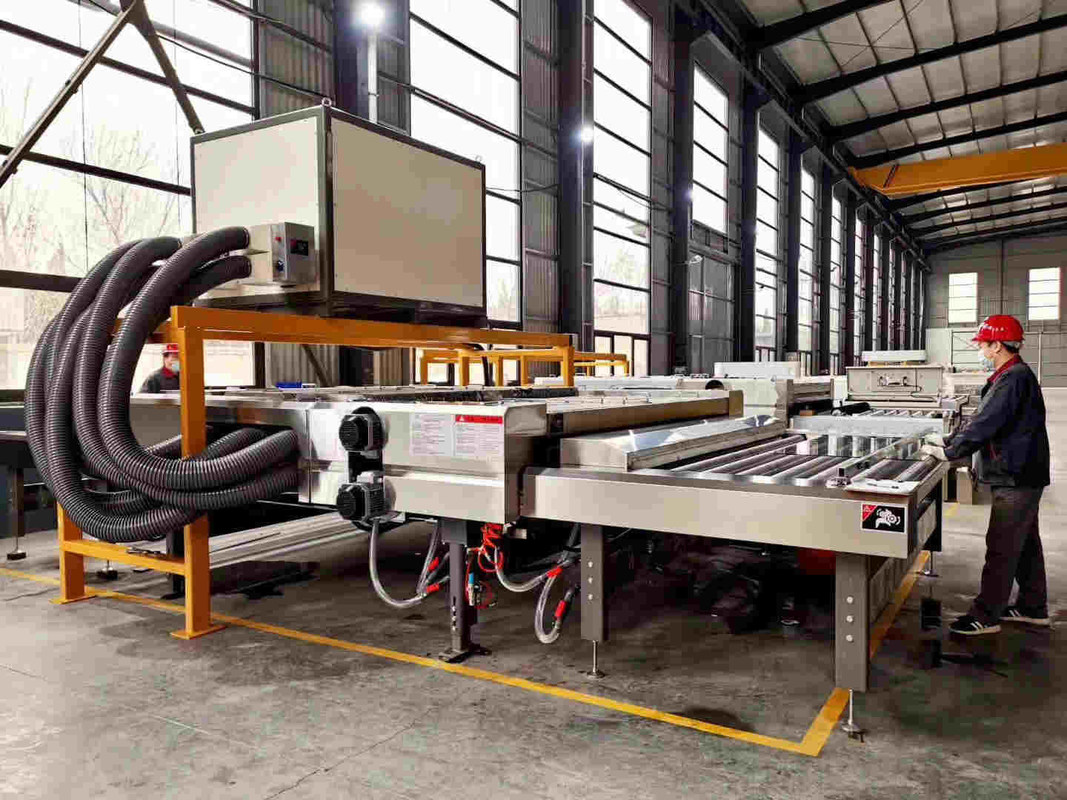

اسم: | آلة غسل وتجفيف الزجاج الأفقية الأوتوماتيكية LJWBQJ2500 | ضمان: | سنة واحدة |
---|---|---|---|
البعد (L * W * H): | 6260 * 4800 * 3100 | نوع التسويق: | منتج عادي |
سمك الزجاج: | 2-25 مم | ||
تسليط الضوء: | آلة صنع الزجاج,آلة الزجاج الزجاج المزدوج |
1. The transfer rubber roller adopts gear rotation, which is stable and convenient for maintenance. 1. تتبنى أسطوانة المطاط التحويلية دوران التروس ، وهو مستقر ومريح للصيانة. The upper and lower brush rollers use two motors for transmission movement, which is stable and the belt is durable. تستخدم بكرات الفرشاة العلوية والسفلية محركين لحركة النقل ، وهي مستقرة والحزام متين.
2. The top of the machine is equipped with a stainless steel water tray, and the roller covered by the transfer rubber can be cleaned by itself during the rotation; 2. الجزء العلوي من الماكينة مزود بعلبة مياه من الفولاذ المقاوم للصدأ ، ويمكن تنظيف الأسطوانة المغطاة بمطاط النقل بنفسه أثناء الدوران ؛ it is also equipped with a sprinkler system that can wet the glass surface before the glass enters the cleaning part to improve the cleaning effect. كما أنها مزودة بنظام رش يمكن أن يبلل السطح الزجاجي قبل دخول الزجاج إلى جزء التنظيف لتحسين تأثير التنظيف. The parts of the washing part that are in contact with water are all made of stainless steel, equipped with a circulation pump, the water tank can draw out the washing liquid, and perform three-layer washing. جميع أجزاء جزء الغسيل التي تتلامس مع الماء كلها مصنوعة من الفولاذ المقاوم للصدأ ، ومجهزة بمضخة دوران ، يمكن لخزان المياه سحب سائل الغسيل ، وغسل ثلاث طبقات. Water can get better results). يمكن أن تحصل المياه على نتائج أفضل).
3. The machine transmission adopts vulcanized rubber cover roller structure (no contact with acid liquid). 3. يعتمد ناقل الحركة هيكل الأسطوانة المطاطية المفلكنة (بدون تلامس مع السائل الحمضي). The cleaning part and the drying part are automatically lifted. يتم رفع جزء التنظيف وجزء التجفيف تلقائيًا. The maximum lifting range is 400mm to adapt to the cleaning of different glass thicknesses. نطاق الرفع الأقصى هو 400 مم للتكيف مع تنظيف سمك الزجاج المختلفة. Continue to clean and replace the comb. استمر في تنظيف المشط واستبداله.
4. Equipped with 3 pairs of hair brush rollers (φ150mm), which can clean LOW-E hard glass, ordinary coated glass and sunlight coated glass. 4. مجهزة بـ 3 أزواج من بكرات فرشاة الشعر (φ150mm) ، والتي يمكنها تنظيف الزجاج الصلب LOW-E ، والزجاج المطلي العادي والزجاج المطلي بأشعة الشمس. When cleaning coated glass, two pairs of powerful brush heads will lift up the cylinder, but will not hurt Coated surface. عند تنظيف الزجاج المطلي ، سيرفع زوجان من رؤوس الفرشاة القوية الأسطوانة ، ولكنهما لن يضران السطح المطلي.
5. بالنسبة لجزء التجفيف ، فإن نظام تجفيف الهواء مجهز بزوجين من سكاكين الهواء وزوجين من سكاكين الهواء المستقيمة وسكاكين الهواء المائلة
In application, the high-pressure fan can completely dry the glass surface, the lateral wind force is large, and the air drying effect is good. في التطبيق ، يمكن للمروحة عالية الضغط تجفيف السطح الزجاجي تمامًا ، وقوة الرياح الجانبية كبيرة ، وتأثير تجفيف الهواء جيد. (Two cold air knife, no need to heat). (اثنان من سكين الهواء البارد ، لا حاجة للحرارة). Keep the product after washing can meet the requirements of drying level. الحفاظ على المنتج بعد الغسيل يمكن أن تلبي متطلبات مستوى التجفيف. The upper blade adjusts the lift through the control system. النصل العلوي يضبط المصعد من خلال نظام التحكم. The maximum internal opening width is 400mm, which is convenient to adjust the height and degree of the air blade and improve the drying effect. الحد الأقصى لعرض الفتح الداخلي هو 400 مم ، وهو مناسب لضبط ارتفاع ودرجة شفرة الهواء وتحسين تأثير التجفيف. Equipped with high-pressure fan 22kw, air intake through air filtration, high wind force, good drying effect, the entire bellows is installed on the top of the drying part, and automatically rises and falls following the washing and drying parts to ensure that the washed products can meet the requirements of drying level. مجهزة بمروحة عالية الضغط 22kw ، مدخل الهواء من خلال ترشيح الهواء ، قوة الرياح العالية ، تأثير التجفيف الجيد ، يتم تثبيت منفاخ كامل في الجزء العلوي من جزء التجفيف ، ويرتفع وينخفض تلقائيًا بعد أجزاء الغسيل والتجفيف لضمان المنتجات المغسولة يمكن أن تلبي متطلبات مستوى التجفيف.
6. Frames and other sheet metal parts that are not in contact with water are sprayed with advanced mechanical coatings after special processing. 6. يتم رش الإطارات والأجزاء المعدنية الأخرى غير الملامسة للماء بطبقات ميكانيكية متقدمة بعد معالجة خاصة. The coating has strong adhesion and the surface is bright and durable. الطلاء ذو التصاق قوي والسطح مشرق ودائم.
